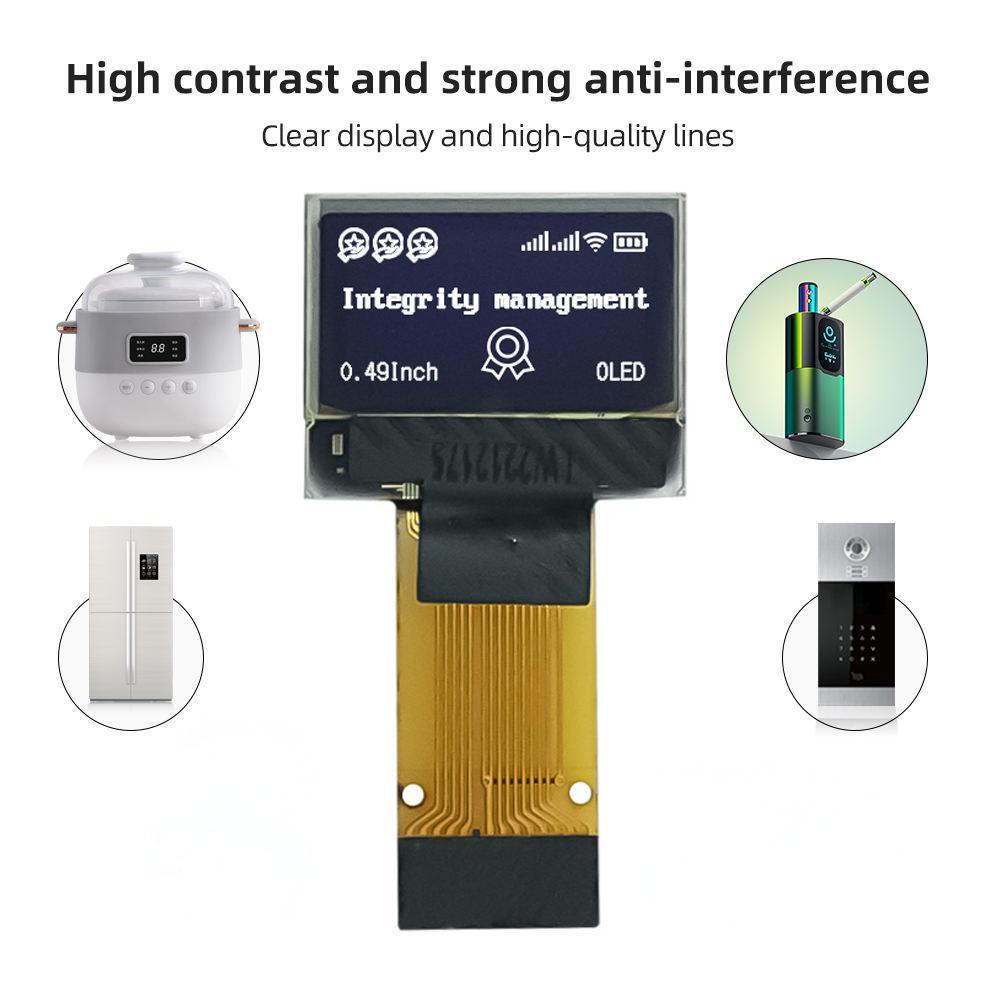

0.49" OLED Display Module with 64x32 Resolution and I2C Interface
This ultra-compact 0.49-inch OLED module features 64×32 resolution and supports I2C interface, offering monochrome white display. Equipped with SSD1315 driver IC, it delivers 2000:1 high contrast and 160~180 cd/m² brightness for clear visuals. With wide temperature range (-40℃ to +85℃), low power consumption, and RoHS compliance, it's ideal for micro IoT devices, mini smart wearables, portable detectors, and space-constrained electronic projects.
Key Specifications
| Product |
0.49 inch OLED Module |
Module Number |
E049XJ-W-C14-02 |
| Resolution |
64(H)×32(V) dots |
Display Color |
White (Monochrome) |

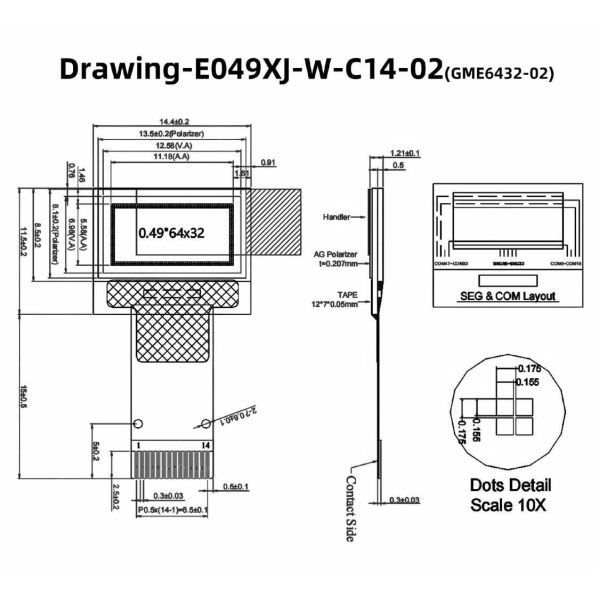

| Panel Size (W×H×T) |
14.4 × 11.5 × 1.21 mm |
Active Area (A.A) |
11.18 × 5.58 mm |
| Pixel Pitch |
0.175 × 0.175 mm |
Pixel Size |
0.155 × 0.155 mm |
| Interface |
I2C (IIC) |
Driver IC |
SSD1315 |
| Operating Temperature |
-40 to +85 ℃ |
Storage Temperature |
-40 to +85 ℃ |
| Brightness (Typ.) |
180 cd/m² |
Contrast Ratio |
2000:1 (Dark Room) |
| Drive Duty |
1/32 Duty |
RoHS Compliance |
YES |
Product Highlights
0.49-inch ultra-compact OLED, 64x32 resolution, I2C interface, SSD1315 driver IC, 2000:1 high contrast, -40~85℃ wide temp, low power, RoHS compliant, easy integration with Arduino/Raspberry Pi
Technical Features
- Ultra-compact design (14.4×11.5mm) perfect for space-constrained microelectronic devices and mini wearables
- I2C interface enables simple wiring and stable communication, reducing integration complexity for small projects
- Wide operating temperature range (-40℃ to +85℃) adapts to extreme industrial and outdoor environments
- 2000:1 high contrast ratio and 180 cd/m² brightness deliver clear, sharp visuals in various lighting conditions
- Low power consumption (180~300μA VDD current) ideal for battery-powered portable and wearable devices
- SSD1315 driver IC ensures reliable performance, with support for internal/external VCC supply modes
- Long service life (up to 50,000 hours at 60 cd/m²) for durable use in long-term operation scenarios
- RoHS compliant, meeting international environmental standards for global market distribution
Electrical Specifications
Logic Power Supply (VDD): 1.65~3.3V (Typ. 2.8V)
Display Power Supply (VCC): 7~9V (External) / 7~7.5V (Internal DC/DC)
DC/DC Power Supply (VBAT): 3.5~4.2V (Internal DC/DC enable)
Operating Current: 180~300μA (VDD), 5~15mA (VCC/VBAT)
Sleep Mode Current: 1~5μA (VDD), 2~10μA (VCC)

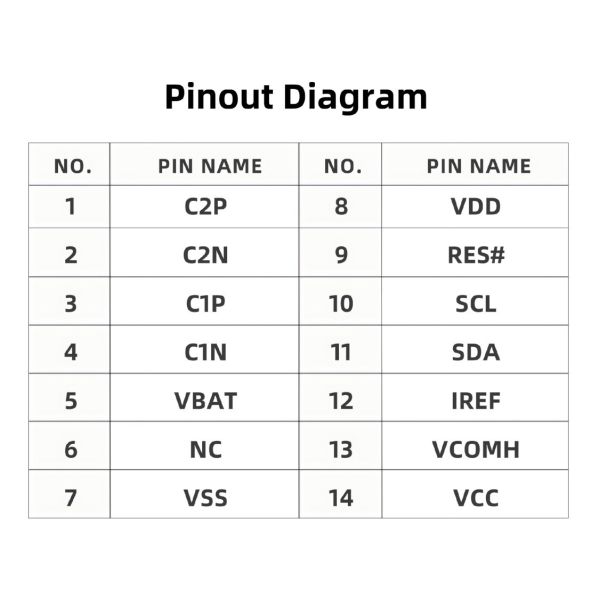

Pin Definition
| PIN |
Symbol |
Description |
| 1 |
C2P |
Positive Terminal of Flying Boost Capacitor; For internal DC/DC converter, connect to capacitor |
| 2 |
C2N |
Negative Terminal of Flying Boost Capacitor; For internal DC/DC converter, connect to capacitor |
| 3 |
C1P |
Positive Terminal of Flying Inverting Capacitor; For internal DC/DC converter, connect to capacitor |
| 4 |
C1N |
Negative Terminal of Flying Inverting Capacitor; For internal DC/DC converter, connect to capacitor |
| 5 |
VBAT |
Power Supply for DC/DC Converter; Connect to external source when converter is used, tie to VDD when not used |
| 6 |
NC |
No Connection; Reserved pin, no external connection required |
| 7 |
VSS |
Logic Circuit Ground; Reference for all voltage signals, must be connected to external ground |
| 8 |
VDD |
Logic Power Supply; 1.65~3.3V, must be connected to external source |
| 9 |
RES# |
Reset Signal Input; Pull low to initialize, keep high during normal operation |
| 10 |
SCL |
I2C Bus Clock Signal; Synchronizes data transmission for I2C communication |
| 11 |
SDA |
I2C Bus Data Signal; Bidirectional data channel between module and controller |
| 12 |
IREF |
Brightness Adjustment Reference; Connect resistor to VSS to set display current (max 12.5μA) |
| 13 |
VCOMH |
COM Signal High Level; Connect capacitor to VSS for signal stabilization |
| 14 |
VCC |
OEL Panel Power Supply; External 7~9V or internal 7~7.5V (DC/DC enable) |
Application Scenarios
- Mini smart wearables (micro fitness trackers, ultra-compact smart watches, health monitors)
- IoT terminals (wireless sensor nodes, micro environmental monitors, small smart home controllers)
- Portable electronic devices (handheld meters, mini detectors, data loggers, portable testers)
- Industrial control systems (compact PLC panels, micro sensor displays, mini industrial controllers)
- Consumer electronics (miniature remote controls, portable audio players, small POS devices)
- Automotive electronics (in-vehicle micro displays, secondary control panels, tire pressure monitors)
- DIY electronics projects (Arduino/Raspberry Pi compatible micro displays, electronic prototypes)
- Medical devices (portable micro monitors, small diagnostic equipment, health testing tools)
Customization Options
- Interface Optimization: I2C address adjustment and communication parameter customization for specific MCUs
- Brightness Tuning: Customizable brightness levels (160~180 cd/m²) for indoor/outdoor application needs
- Polarizer Customization: Anti-glare, wide-view polarizer options for special viewing environments
- Packaging Solution: Custom anti-static packaging, vacuum packaging with desiccant for long-term storage
- Warranty Extension: Extended warranty options (18~24 months) for bulk orders (500+ pcs)
- Labeling Service: Custom part number or logo printing for inventory management
Handling Notes
- Electrostatic Protection: Use anti-static bracelets and grounded tools during handling. Avoid assembly in dry environments (recommended relative humidity 45%~60%). Do not touch pins, FPC patterns or polarizer directly with bare hands.
- Cleaning Instructions: The polarizer surface is fragile and scratch-prone. Clean with adhesive tape (Scotch Mending Tape No. 810 or equivalent). Do not use water, alcohol, ketone or aromatic solvents.
- Storage Conditions: Store in anti-static bags at 23±5℃, humidity ≤60%RH. Avoid direct sunlight, high temperature/humidity or low temperature environments. Remove protective film before assembly.
- Operation Precautions: Follow correct power-on (VDD -> Initialization -> VCC -> Display On) and power-off sequences. Do not apply signals when power is off; avoid fixed pattern display for long periods.
- Soldering Tips: Welding temperature: 320~350℃; Welding time: ≤10 seconds per pin. Do not over-bend FPC (bending radius ≥5 mm) to prevent damage.
- Mechanical Protection: Do not crush, shake or jolt the module. The panel is glass-based, avoid mechanical impacts or pressure on the display surface.
